Overview

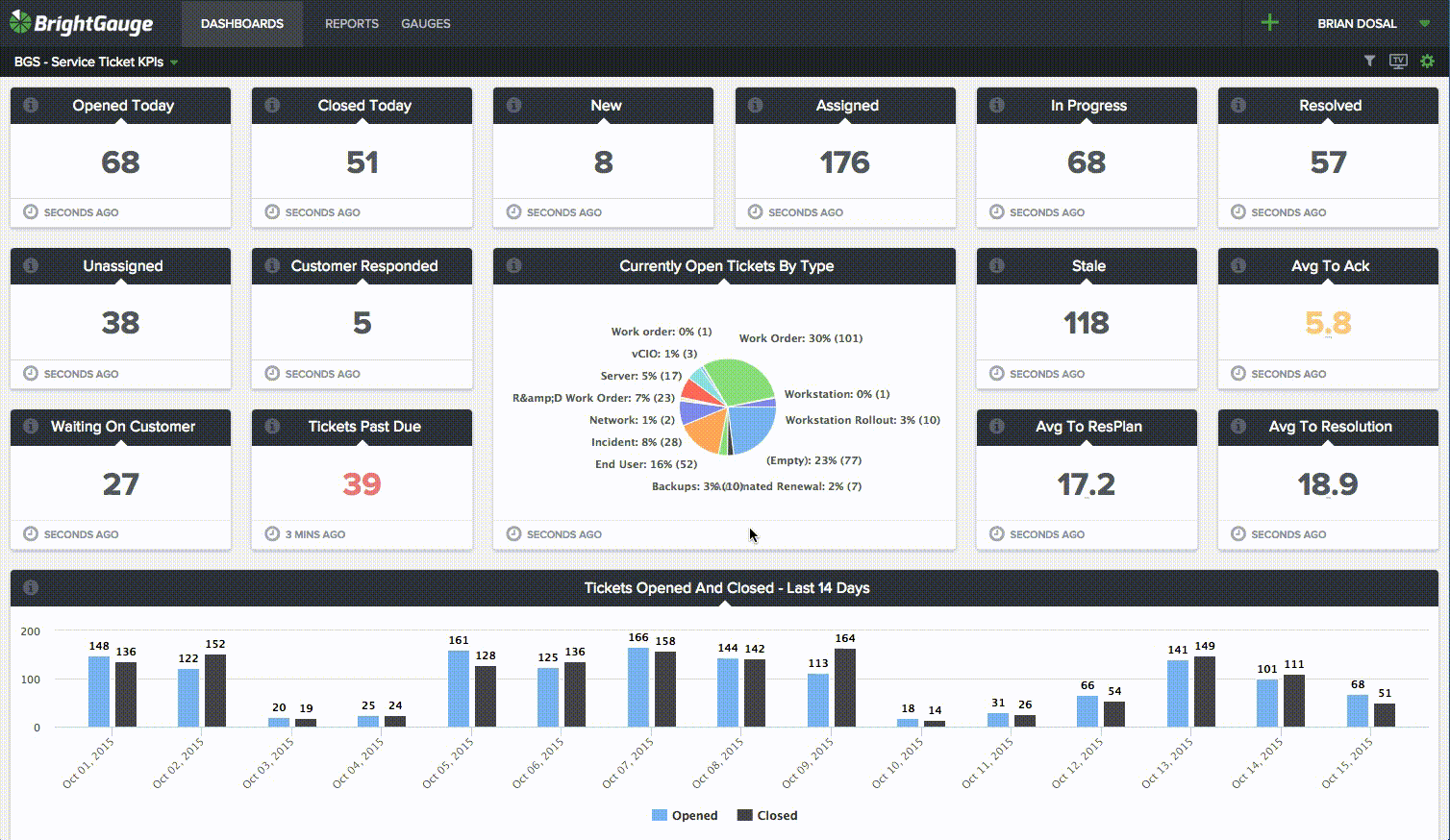

This article describes the deep linking feature of BrightGauge. Deep linking enables you to turn certain fields into hyperlinks that link directly to a data source. For example, you can link Ticket Numbers directly to ConnectWise Manage:

As you can see, deep linking is showing in Drilldown, but it also works for list gauges and table gauges.

Note: Deep Linking shows everywhere except on Client Reports. We have kept it disabled for any and all client reports.

Deep linking is available for the following data sources:

• ConnectWise PSA On-Premises
• ConnectWise PSA Cloud
• ConnectWise Automate On-Premises
• ConnectWise Automate Cloud
• Autotask
• Datto REST API
• Kaseya BMS
• ServiceNow
• ZenDesk



ConnectWise PSA (On-Premises)

To enable deep linking for on-premises PSA:

1. Navigate to DATA > Datasources.
2. Select ConnectWise PSA On-Premise.
3. In the Deep Linking section, enter your ConnectWise PSA URL and Company Name.
4. Select your Locale.
5. Click Save.

Once that is complete, any gauges being powered off datasets with the below five fields will be hyperlinked back to your ConnectWise web portal.

• ticket_number
• config_recid
• opportunity_recid
• so_activity_recid
• Time_RecID

Let us know if you have any feedback!



ConnectWise PSA (Cloud)

To enable deep linking for hosted PSA:

1. Navigate to DATA > Datasources.
2. Select ConnectWise PSA Cloud.
3. In the Deep Linking section, select your Locale.
4. Click Save.

Once that is complete, any gauges being powered off datasets with the below five fields will be hyperlinked back to your ConnectWise web portal. Please note that default datasets for CW API contain an "id" field and a "ticket_number" field. The links will appear in Drilldown and List Gauges!

• ticket_number
• config_id
• opportunity_recid
• so_activity_recid
• Time_RecID

Let us know if you have any feedback!



ConnectWise Automate (On-Premises)

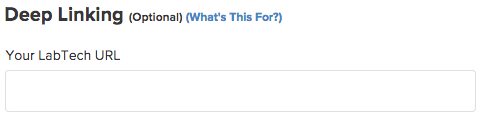

For ConnectWise Automate on-premises, you will have to go to your data source and enter your URL. Once that is complete, any gauges being powered off datasets with the following field will be hyperlinked back to your ConnectWise Automate web portal.

• computer_id

ConnectWise Automate (Cloud)

For hosted ConnectWise Automate, deep linking will automatically be configured using your company URL that is required for the general data source configuration. Any gauges being powered off datasets with the following field will be hyperlinked back to your ConnectWise Automate web portal.

• computer_id

Autotask

For Autotask users, it's simply entering in the Autotask URL you use to access Autotask. For example, see below.

Once you get that updated in your data sources page, the field "ticket_id" is hyperlinked in any drilldown or list gauge. Please note, this ticket id field is different from the ticket_number field.



Datto REST

Deep linking is enabled automatically for the Datto REST API data source. This means that after the data source is connected, the available fields become hyperlinks in drilldown and list gauges. For Datto REST, the deep linking fields are:

• device_serial_number
• last_screenshot_url



Kaseya BMS (Vorex)

For Kaseya BMS users, this feature works straight out of the box as you already use your BMS URL to connect the data source. This means that after the data source is connected, the available fields become hyperlinks in drilldown and list gauges. For BMS, the fields are:

• ticket_id
• account_id
• hardware_asset_id
• software_asset_id
• opportunity_id
• activity_id
• project_id
• invoice_id
• contract_id



ServiceNow

For ServiceNow users, deep linking works straight out of the box. Once the data source is connected, the available fields become hyperlinks in drilldown and list gauges. For ServiceNow, the deep linked fields are:

• change_request_id
• company_id
• contract_sla_id
• incident_id
• problem_id
• service_catalog_request_item_id
• service_catalog_request_id
• survey_response_id
• user_id
• task_id
• task_sla_id
• task_time_entry_id



ZenDesk

For ZenDesk users, this feature works straight out of the box as you already enter their ZenDesk URL to connect the data source. This means that once the data source is connected, the field "ticket_number" will be hyperlinked in any drilldown or list gauge. Please note, this "ticket_number" field is different from the "id" field.
