Connecting to NinjaOne (NinjaRMM)

NinjaOne (formerly NinjaRMM) is now a featured integration in BrightGauge! The NinjaOne integration allows you to get up-to-the-minute data on your managed endpoints in a single pane of glass view. This document describes how to connect to NinjaOne and lists the available dashboards, reports, and datasets.

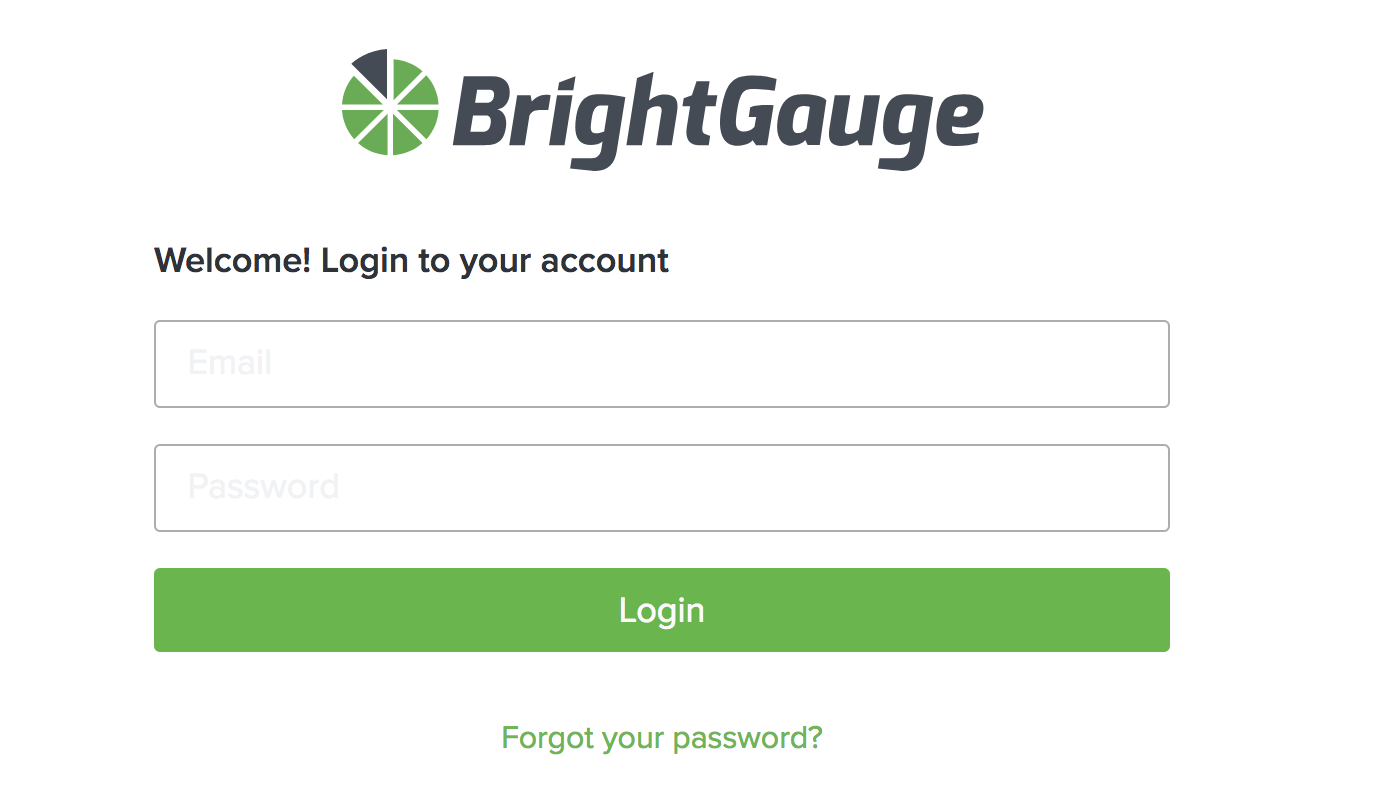

Log in to your BrightGauge Account

If you have not yet created an account, go here to get started.

After you are logged in:

  • New Accounts

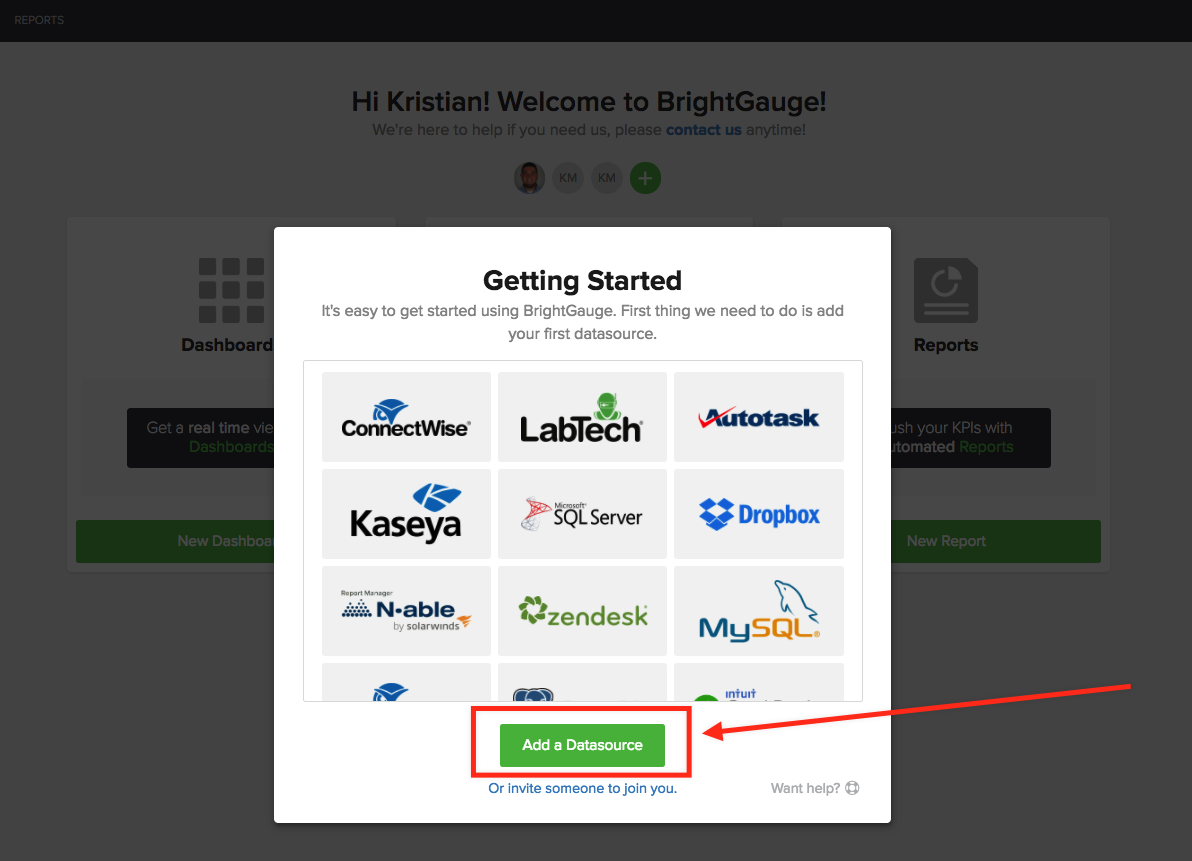

On first login, from the Account Overview page, click on the Add a Datasource button:

  • Existing Accounts

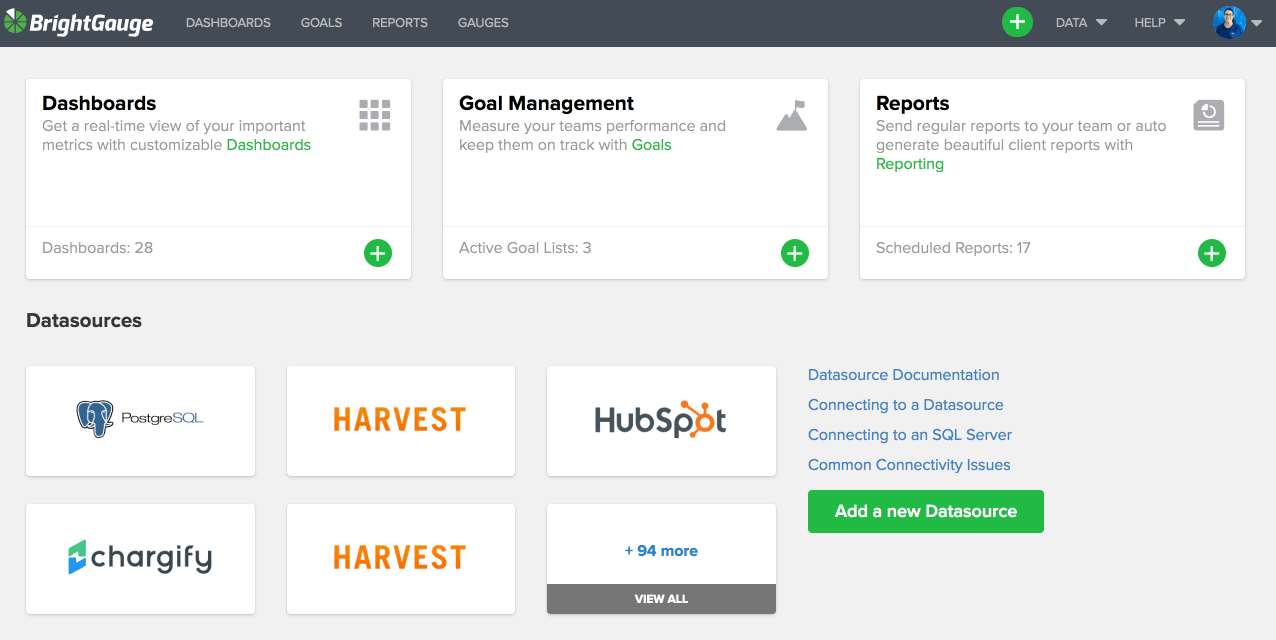

From the Account Overview page (to access, click on the BrightGauge logo in the top left-hand corner), click on the Add a new Datasource button next to the list of your existing datasources:

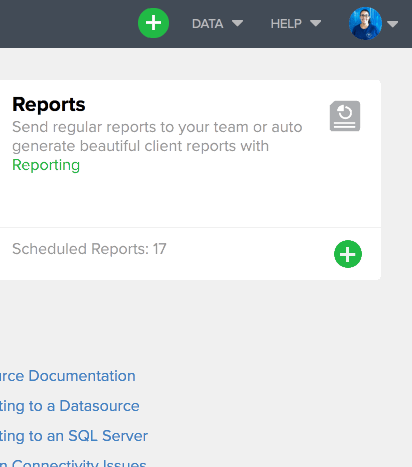

Or, click on Data in the top right corner of the screen and select Datasources:

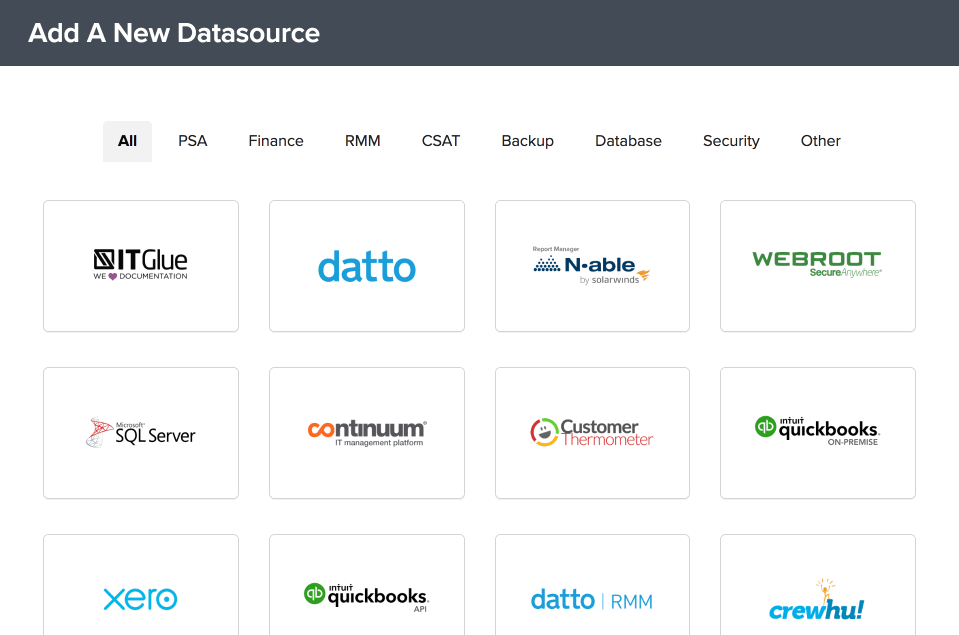

You can find the NinjaOne datasource under All or under the category it belongs to. In this case, we can find NinjaOne under RMM:



Configure the Datasource

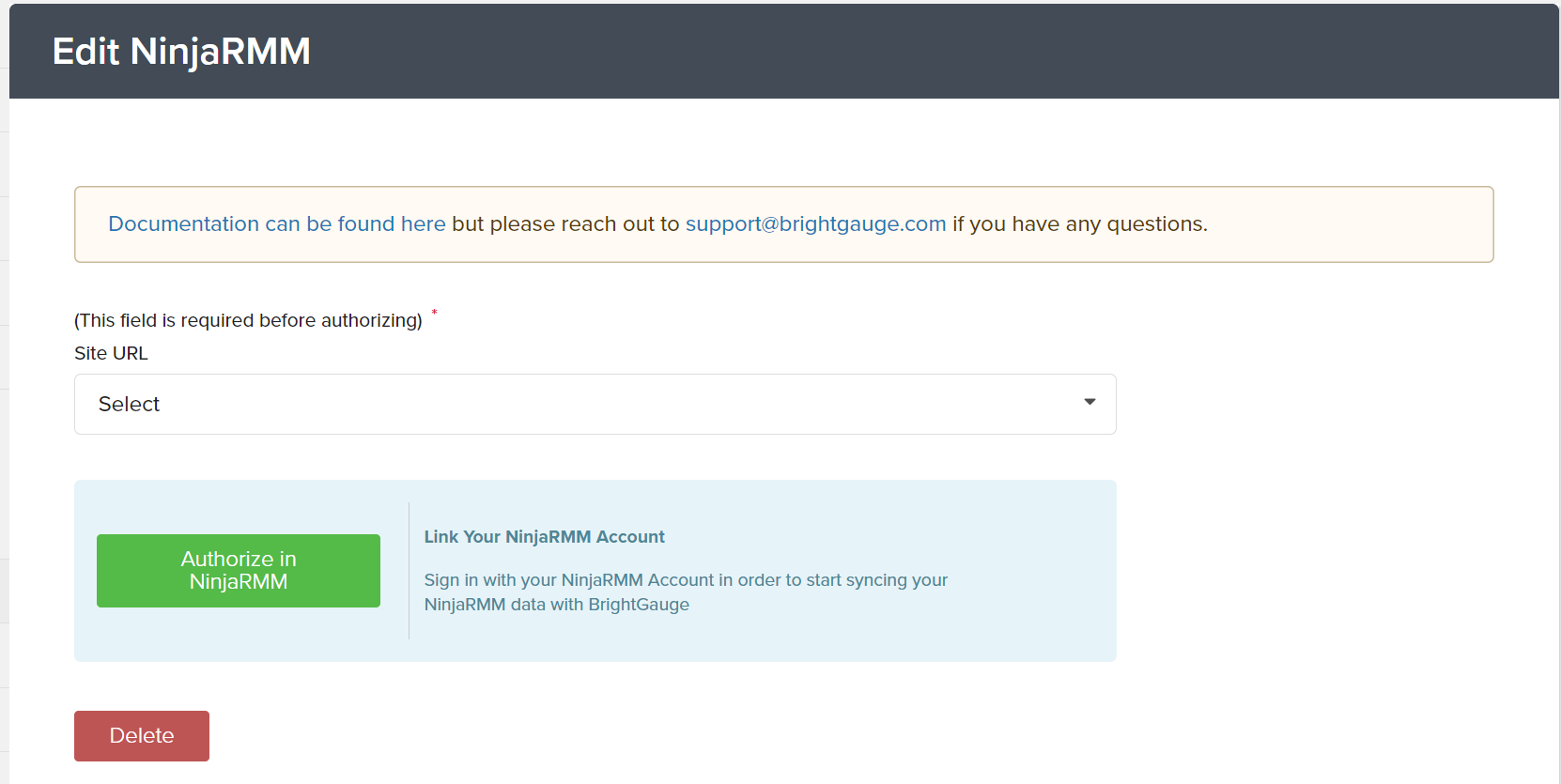

Whether a new account or an existing, clicking on the NinjaOne datasource logo brings you to the page below. Simply authorize the connection:

  1. Select your NinjaOne Site URL. The following options are available:
  2. Click Authorize in NinjaOne. A NinjaOne login window opens.
  3. Enter your NinjaOne login credentials and authorize the connection.
  4. Enter a Name for the datasource.



Test Connection

Make sure to test the connection. If successful, save the connection.

Dashboards, reports, datasets, and gauges will be added to your account after the datasource is saved. They start syncing immediately and typically complete syncing after 20-30 minutes.


Default Dashboards

  • NinjaOne - Machine Monitoring


Default Reports

  • NinjaOne - Machine Monitoring Report

For a list of all default gauges, please visit the Gauges section of your account, sort by the Datasource you'd like to see, and select for Default.

If you have any questions, please contact Support by selecting Help > Open a Ticket from the top menu bar.



  • Devices
  • OS Patch Installs
  • Volumes
  • Software Patch Installs
  • Software
  • OS Patches
  • Operating Systems
  • Disks
  • Antivirus Threats
  • Antivirus Status
  • Alerts
